Tina2SV12 unboxing guide

Tina2SV12 unboxing guide

Step 1: Remove the 3D printer and accessories from the box.

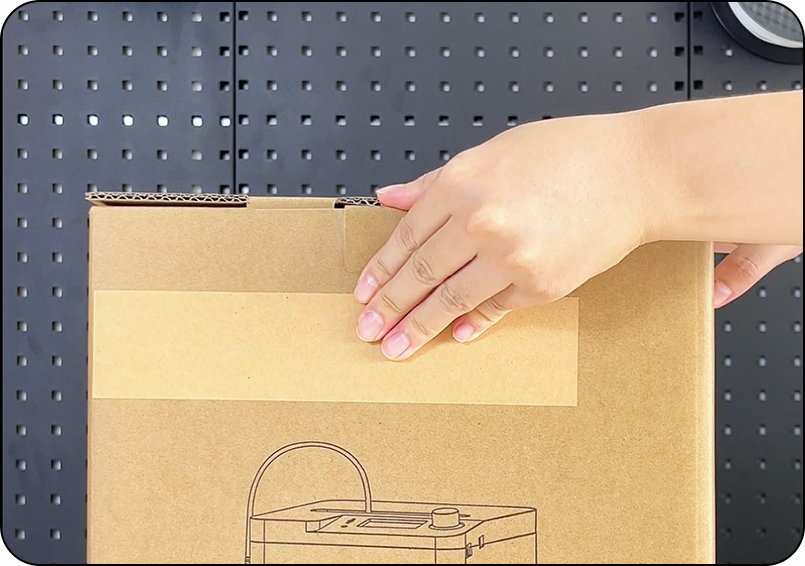

① Open the box.

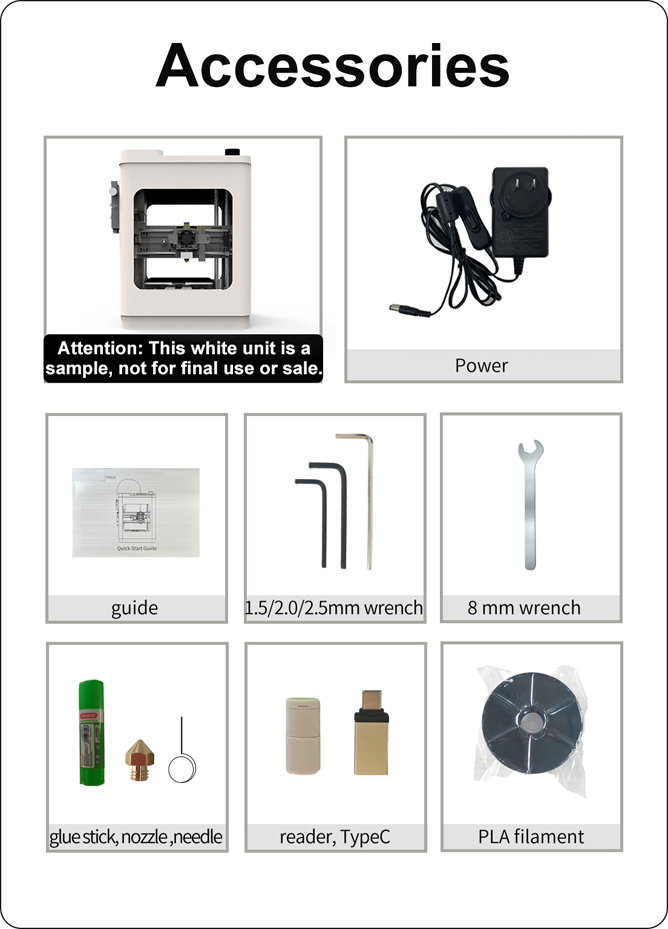

② Take out all accessories and the 3D printer. Then, remove all protective packaging from the device.


Step 2:Remove all fixtures.

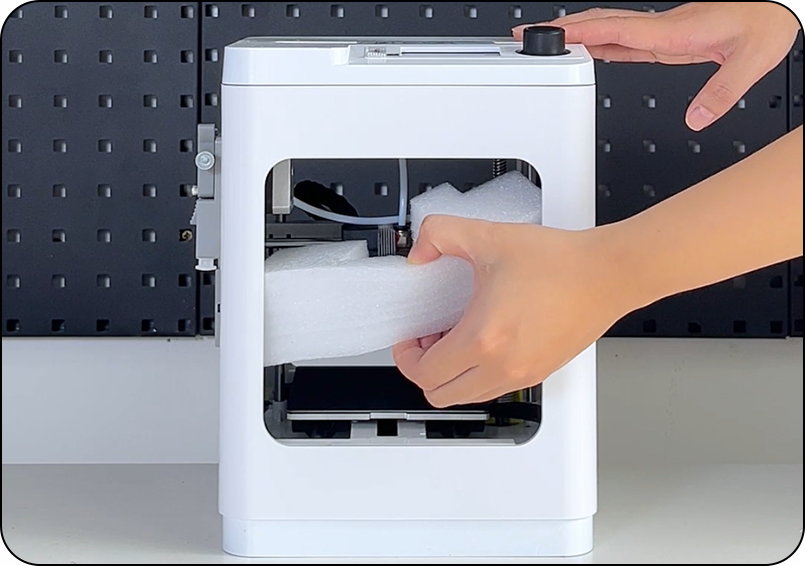

① First, remove the bubble wrap from the printer.



② Then, peel off all the tapes securing the parts.

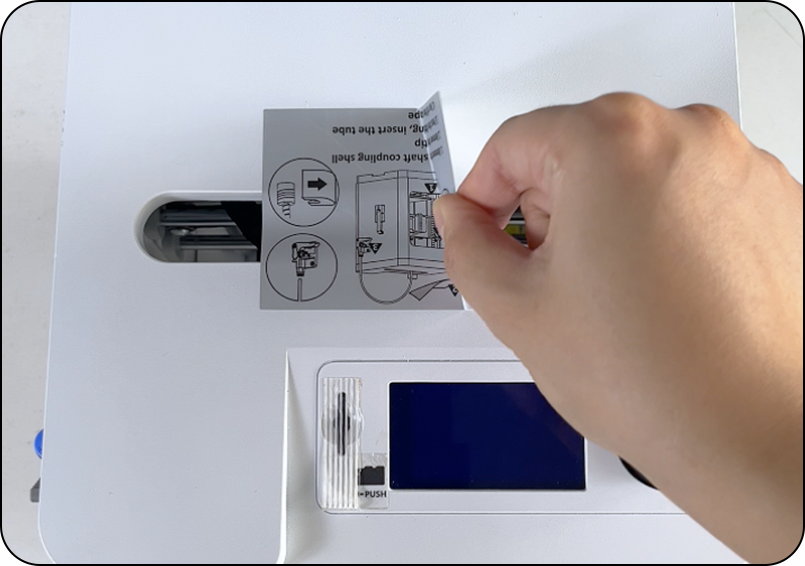

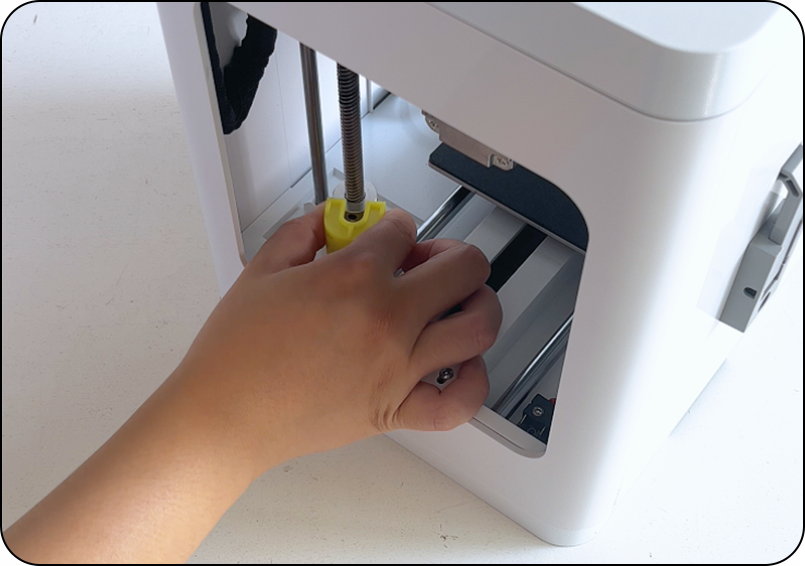

③ Take off the sticker, and according to the label to remove the shaft coupling shell .

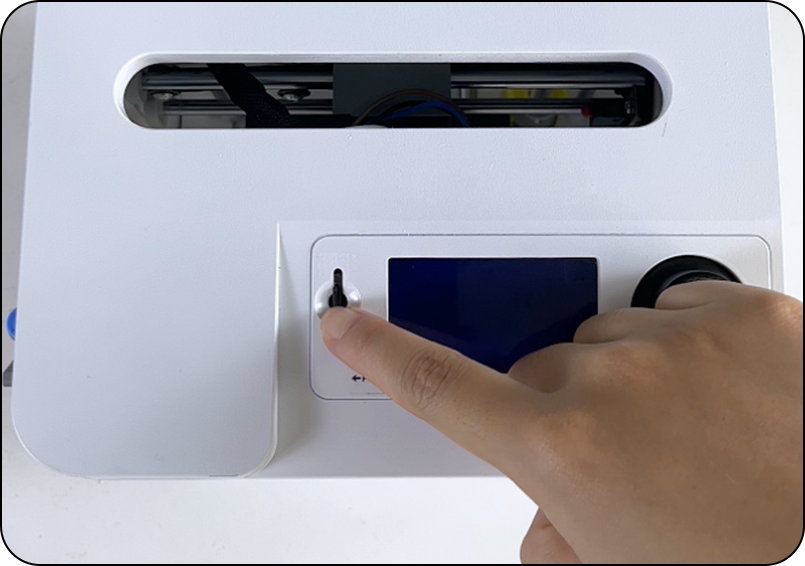

④ Note: The TF card is already inserted into the printer.













Step 3:Insert the tube, plug in the power and turn on it.

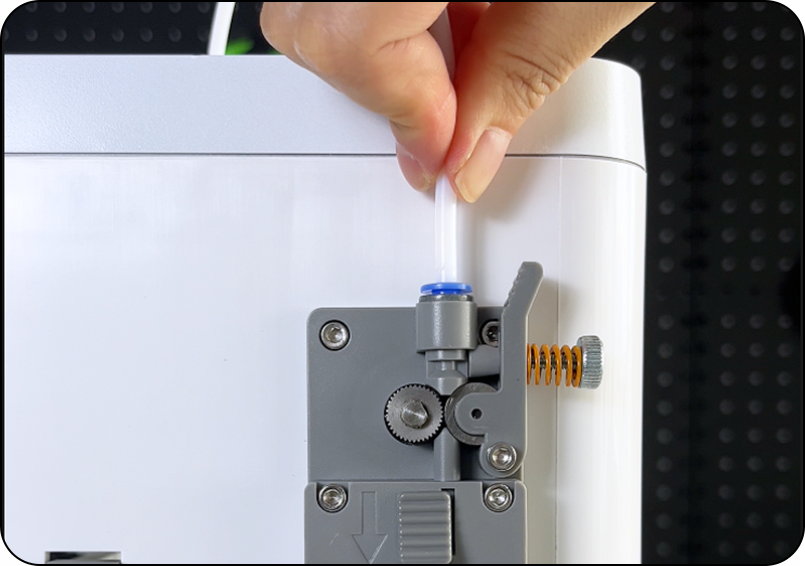

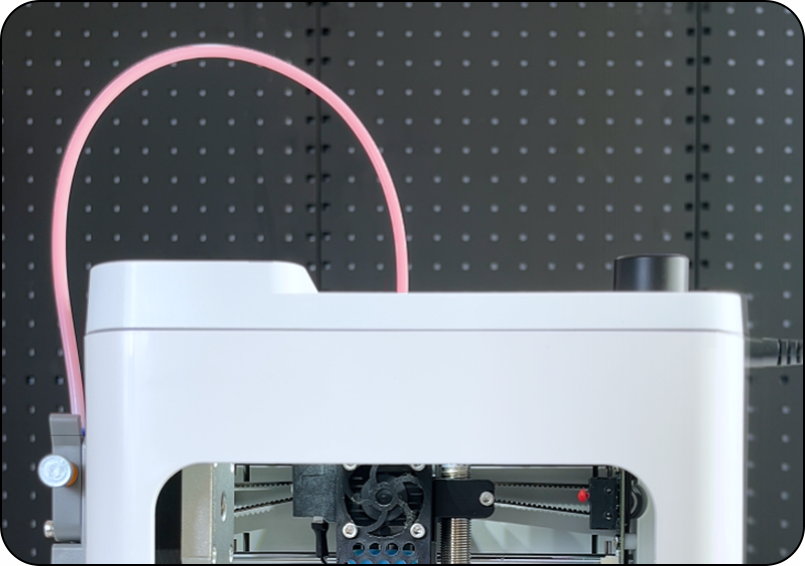

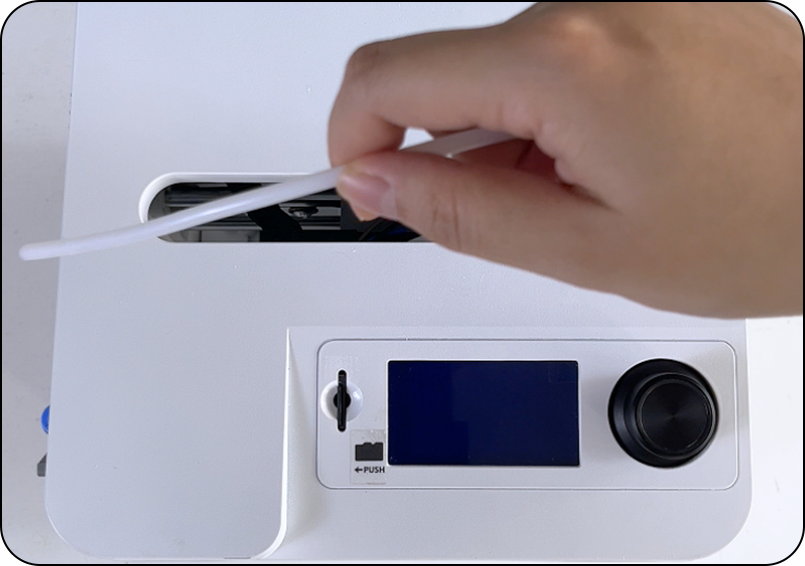

① Take out the filament tube, and insert the tube into the extruder.

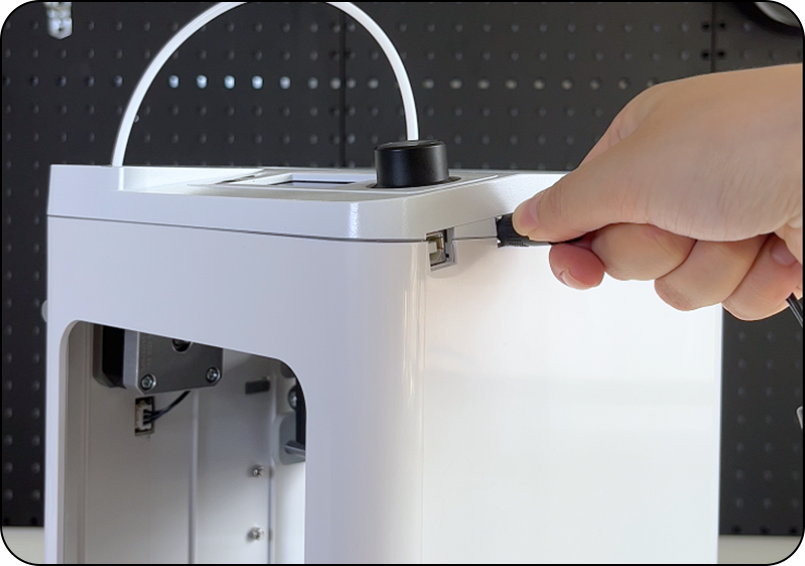

② Next, plug in the power cable.



③ Turn on the power switch.



Step 4:Insert the filament, and perform the loading operation.

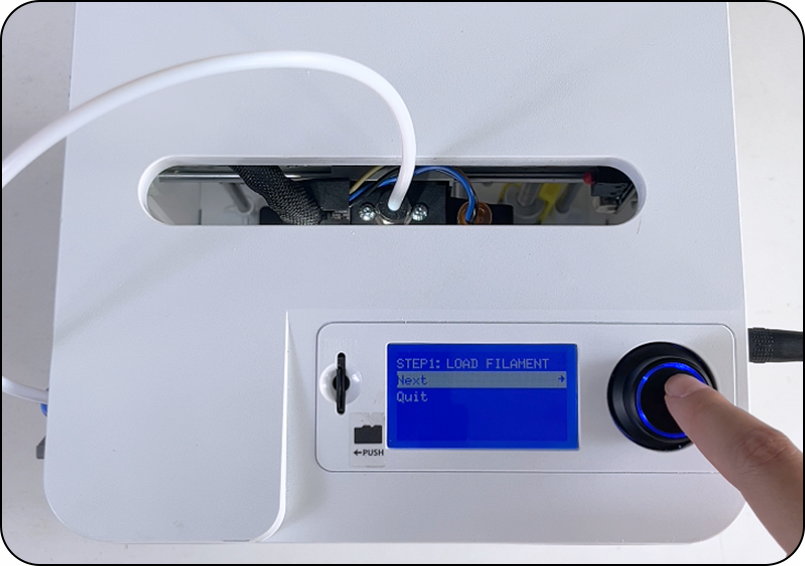

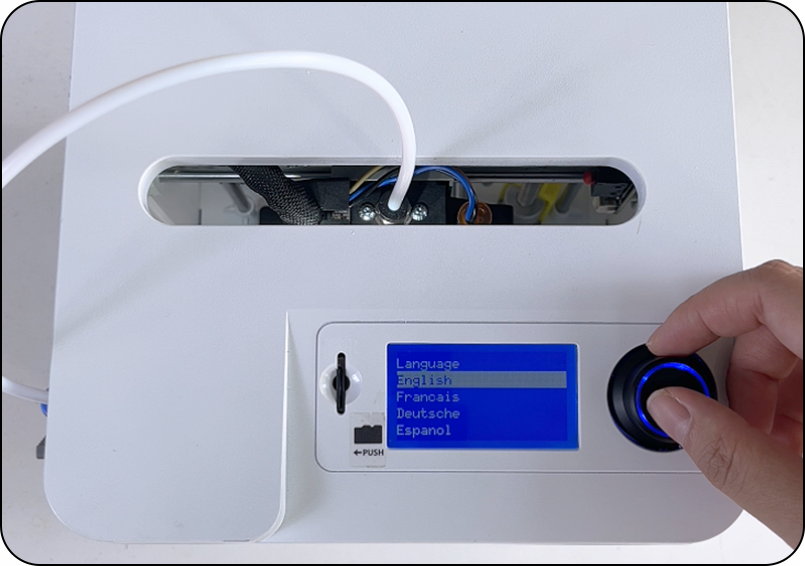

① First, select your preferred language and click "Load Filament".Then, follow the on-screen instructions.

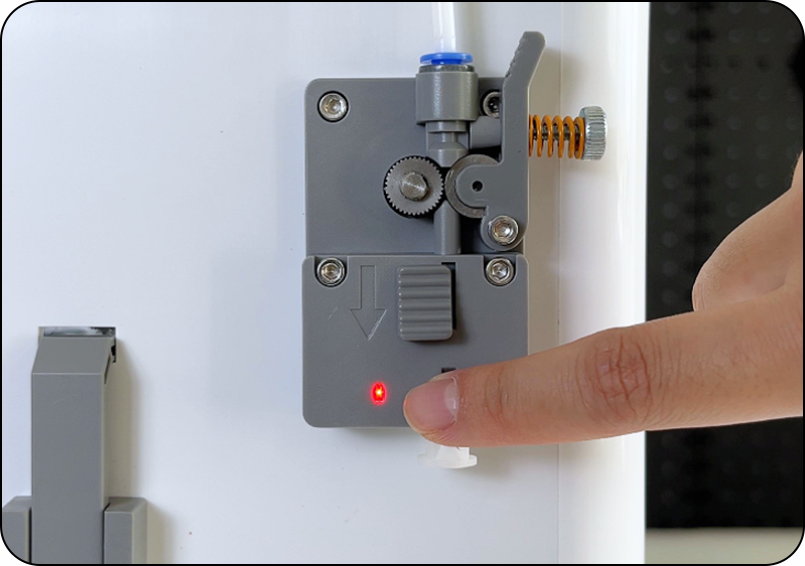

② When there is no filament, the light will turn on.

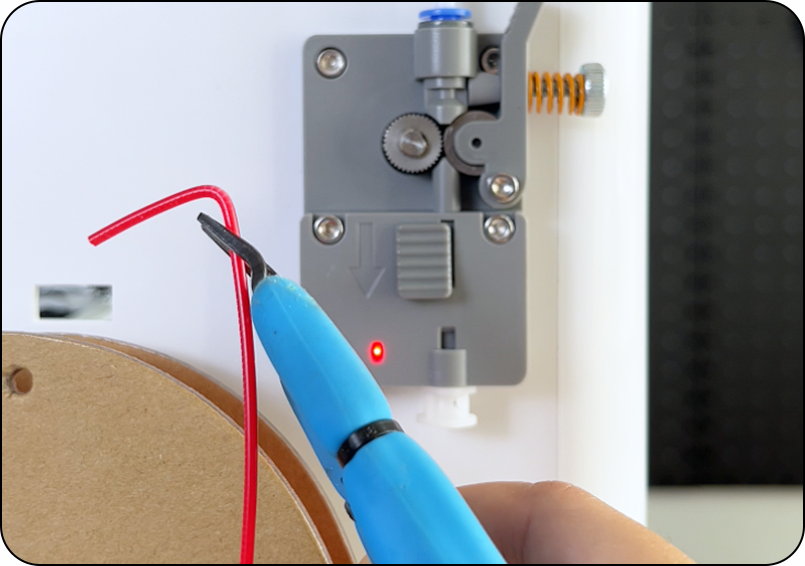

③ Take out the filament and place it on the holder. Cut off the bent part of the filament to prevent clogs.

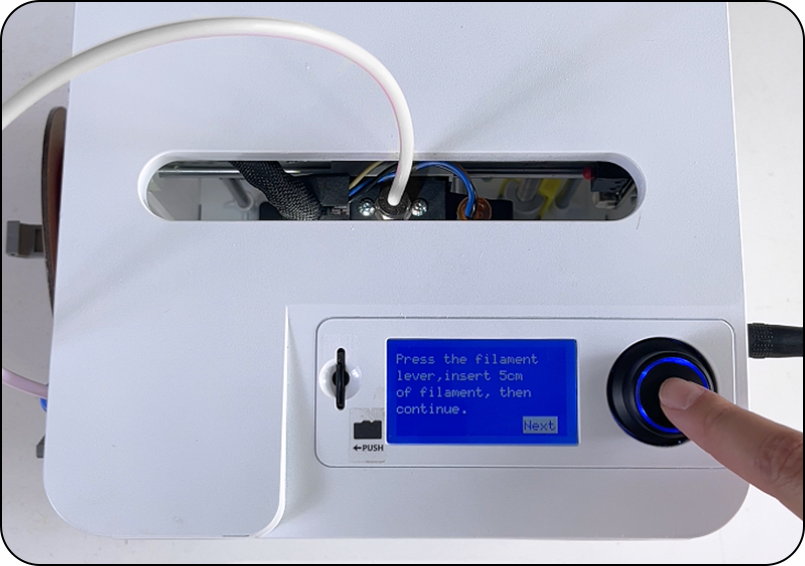

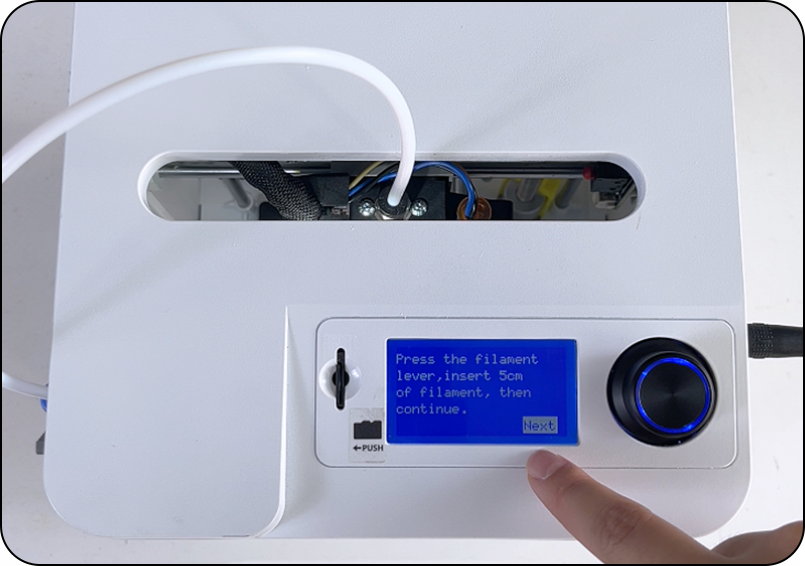

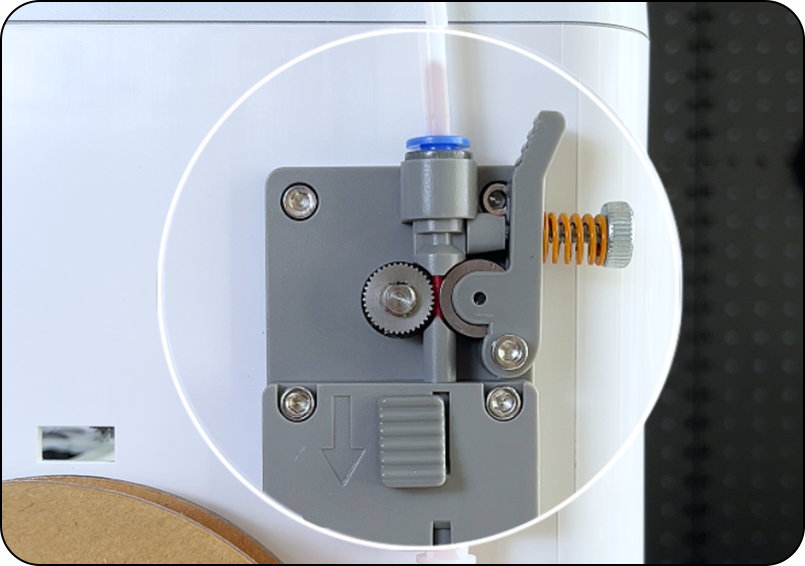

④ Press the filament lever and insert it. The printer will automatically load about 5 cm of filament.

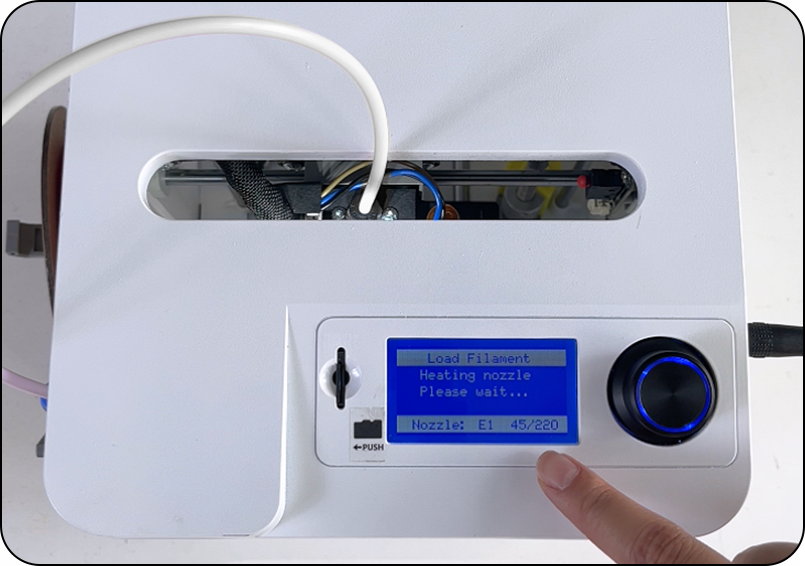

⑤ Click “Next” to continue. The machine will heat up to 220 °C.

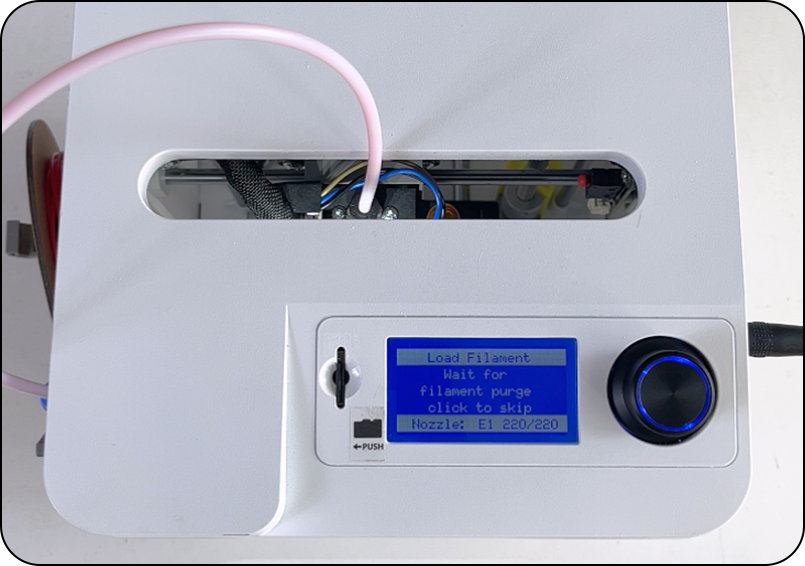

⑥ Then, the printer will automatically load the filament into the nozzle and purge approximately 15 
cm.





⑦
Once the nozzle is extruding filament smoothly, you may press the knob to bypass the rest of the process.






Frequently Asked Questions:

1.       Q: What should I do if the seal is damaged?
        A: Please contact online support in the app, and our customer service will assist you with after-sales support.

2.       Q: What should I do if any accessories are missing?
        A: Please contact online support in the app, and our customer service will send you the missing accessories.

3.      Q: Can I use third-party accessories with this product?
       A: We recommend using only manufacturer-approved accessories to ensure optimal performance and avoid damage.

4.       Q: What happens if the tube is not inserted all the way?
        A: The filament may get stuck in the tube when inserting it into the extruder.

5.      Q: What happens if the TF card is inserted incorrectly?
        A: The TF card is pre-installed in the 3D printer. Inserting it incorrectly or repeatedly removing and reinserting it may damage the TF card or its slot. Always handle the TF card carefully when inserting it into the printer or a USB card reader to avoid damage.

6.     Q: What should I do if the filament is not coming out?
       A: Check if the filament is jammed in the extruder or stuck in the tube. Please reinsert the filament and ensure it is properly fed into the nozzle.
